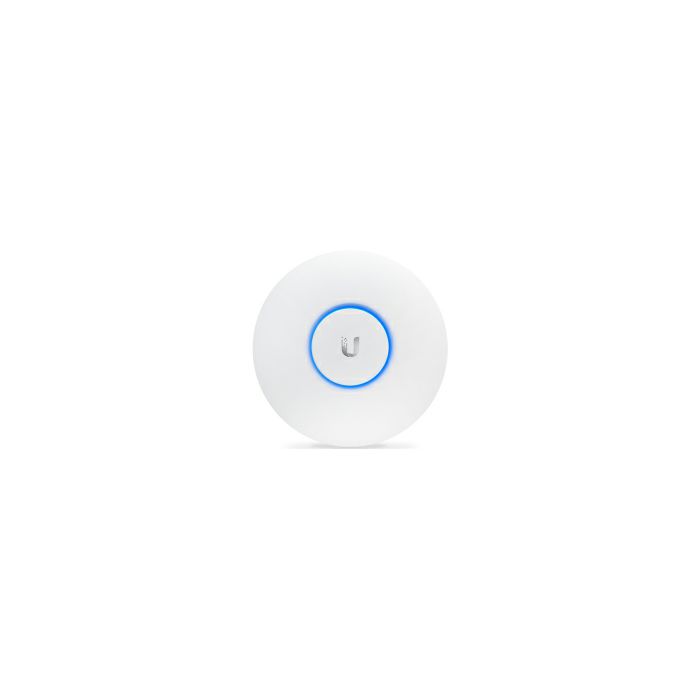

- The UniFi AC Pro AP features the latest Wi-Fi 802.11ac, 3x3 MIMO technology in a refined industrial design and is ideal for deployment of maximum-performance wireless networks

UP TO 5× FASTER WITH DUAL-RADIO 3x3 11AC MIMO TECHNOLOGY
- The UniFi AC Pro AP supports simultaneous dual-band, 3x3 MIMO technology in the 5 and 2.4 GHz radio bands

DESIGNED FOR OPTIMAL RF PERFORMANCE
- The newly redesigned UniFi Controller optimizes RF performance

VERSATILE DESIGN
- The UniFi AC Pro AP is a gigabit, 802.3af-powered access point suitable for indoor or outdoor use

SCALABLE ENTERPRISE Wi-Fi MAMAGEMENT
- The UniFi Controller v5 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance
- With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller
- Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field

Specifications
- Networking Interface: 2× 10/100/1000 Ethernet Ports
- Port: 1× USB 2.0 Port
- Buttons: Reset
- Power Method: Passive Power over Ethernet (48V), 802.3af/802.3at Supported (Supported Voltage Range: 44 to 57VDC)
- Power Supply: UniFi Switch (PoE)
- Power Save: Supported
- Maximum Power Consumption: 9W
- Maximum TX Power: 2.4 GHz/5 GHz: 22 dBm
- Antennas: 3 Dual-Band Antennas, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
- Wi-Fi Standards: 802.11 a/b/g/n/r/k/v/ac
- Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
- BSSID: Up to 8 per Radio
- Mounting: Wall/Ceiling (Kits Included)
- Operating Temperature: -10C to 70C (14F to 158F)
- Operating Humidity: 5% to 95% Noncondensing
- Dimensions: 196.7×196.7×35 mm
- Weight: 350 g / 450 g (With Mounting Kits)

ADVANCED TRAFFIC MANAGEMENT
- VLAN: 802.1Q
- Advanced QoS: Per-User Rate Limiting
- Guest Traffic Isolation: Supported
- WMM: Voice, Video, Best Effort, and Background
- Concurrent Clients: 200+

SUPPORTED DATA RATES
- 802.11ac: 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)

- 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
