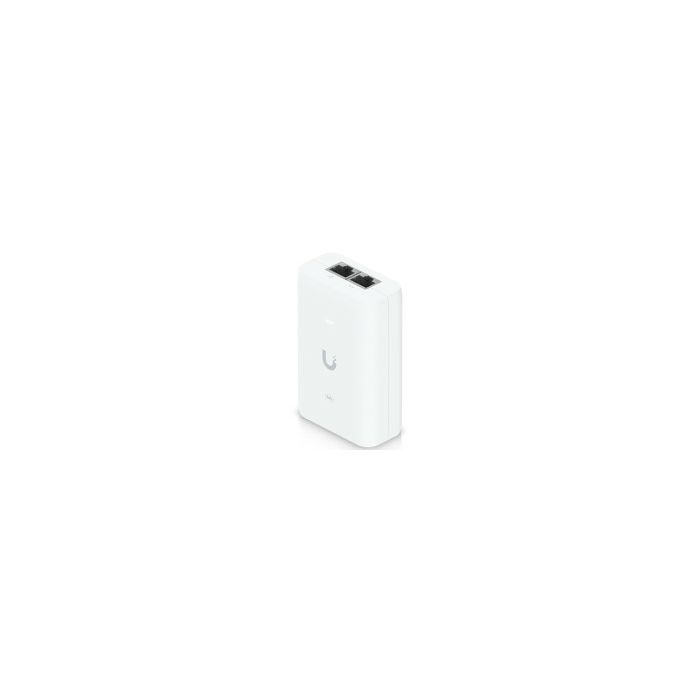

- An adapter that can power UniFi PoE+ devices with wireless mesh applications, or offload PoE switch power dependencies.
• Delivers up to 30W of PoE+
• Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR, and other PoE+ devices
• Surge, peak pulse, and overcurrent protection
• Contains RJ45 data input, AC cable with earth ground, and PoE+ output
• LED indicator for status monitoring

Specifications
Model: U-POE-at
Dimensions: 93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight: 156 g (5.5 oz)
Output voltage: 48V DC @ 0.65A
LAN activity indicator: No
Gigabit LAN port: Yes
Remote reset capability: No
Reset button: No
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 0.75A Max.
Inrush current: <100A peak at 26_
Efficiency: 87%
Output ripple: 1% max.
Switching frequency: 70 kHz max.
Line regulation: ? 3%
Load regulation: ? 5%
2-pair powering: Pins 4, 5 (+) and 7, 8 (-)
4-pair powering: No
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 _s) power
Peak pulse current: 36A (10/1000 _s) data
Shunt capacitance: <5 pF data
Response time: <1 ns
Operating temperature: 0 to 40° C (32 to 104° F)
Storage temperature: -30 to 70°C (-22 to 158° F)
Operating humidity: 10 to 95% noncondensing
Certifications: CE, FCC, IC, UL
