Incredible 2.5G Networking
- 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.

Household Storage, Share in Seconds
- For local connections, a 2.5G PCIe adapter helps build a lightning fast transport channel between a central storage device and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

2.5G Extremely Fast Internet Response
- With 2.5 Gbps internet access, your gaming will be fully optimized with a large boost in speed, latency, and responsiveness. Large-sized game downloads, seamless live streaming, and massive data backups via the cloud are as easy as choosing your character.

Versatile, Multi-Speed Compatibility
- 2.5G Base-T is backwards compatible with multiple data rates, including 2.5 Gbps, 1 Gbps, 100 Mbps and 10 Mbps Base-T connectivity. The 2.5G Ethernet port automatically negotiates between higher and lower speed connections, allowing you to upgrade to 2.5G networking smoothly.

QoS Support
- Quality of Service technology ensures enough bandwidth and avoids network congestion. Whether streaming or real-time gaming, enjoy a smooth web experience.

Wake On LAN
- Remotely power on/off your computer with WOL, good for centralized management.


Low-Profile Bracket
- In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases.

Easy Setup
- Simple software installation with the intuitive Utility on the provided CD.

Comprehensive System Support
- Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 022/2019/2016/2012 R2/2012/2008 R2, Linux.


HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x
- Interface: 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port
- Network Media: 2.5GBASE-T/1000BASE-T/100BASE-TX
- LED: 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act
- Data Rates: 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode,20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode
- Dimensions: 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
- Flow Control: 802.3x

OTHERS
- Certification: FCC, CE, RoHS

Package Contents:

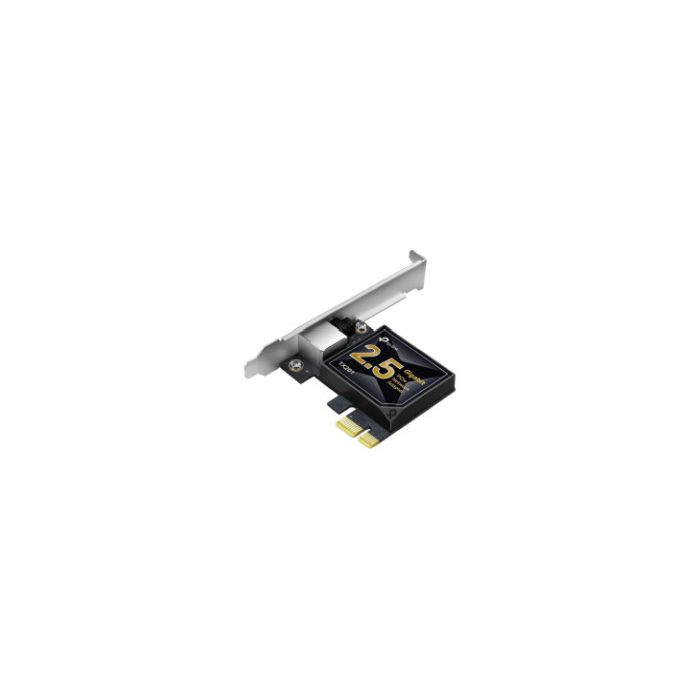

- 2.5 Gigabit PCIe Network Adapter (TX201)
- Standard/ Low-Profile Brackets
- Quick Installation Guide
- Resource CD
- System Requirements: Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux

Environment
- Operating Temperature: 0?~40? (32? ~104?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
