Features
- 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work
- Supports Access Point mode to create a new Wi-Fi access point
- Parental Controls manage when and how connected devices can access the internet
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Compatible with IPv6 (Internet Protocol version 6)
- Guest Network provides separate access for guests while securing the home network

HARDWARE FEATURES
- Interface:
* 4 10/100Mbps LAN PORTS
* 1 10/100Mbps WAN PORT
- Button: WPS/RESET Button
- Antenna: 2 Antennas
- External Power Supply: 9VDC / 0.6A
- Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Dimensions (W×D×H): 182×128×35 mm
WIRELESS FEATURES
- Frequency: 2.4-2.4835GHz
- Signal Rate:
* 11n: Up to 300Mbps(dynamic)
* 11g: Up to 54Mbps(dynamic)
* 11b: Up to 11Mbps(dynamic)
- Reception Sensitivity:
* 270M: -68dBm@10% PER
* 130M: -68dBm@10% PER
* 108M: -68dBm@10% PER
* 54M: -68dBm@10% PER
* 11M: -85dBm@8% PER
* 6M: -88dBm@10% PER
* 1M: -90dBm@8% PER
- Transmit Power: CE: <20dBm
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
- Quality of Service: WMM, Bandwidth Control
- WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP
- Management:
* Access Control
* Local Management
* Remote Management
- DHCP: Server, Client, DHCP Client List, Address Reservation
- Port Forwarding: Virtual Server,Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, Comexe, NO-IP
- VPN Pass-Through: PPTP, L2TP, IPSec (ESP Head)
- Access Control: Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
- Firewall Security:
* DoS, SPI Firewall
* IP Address Filter/MAC Address Filter/Domain Filter
* IP and MAC Address Binding
- Protocols: Support IPv4 and IPv6
- Guest Network: 2.4GHz Guest Network ×1
OTHERS
- System Requirements: Windows 2000/XP/Vista/7/8/8.1/10 or Mac OS or Linux-based operating system
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing

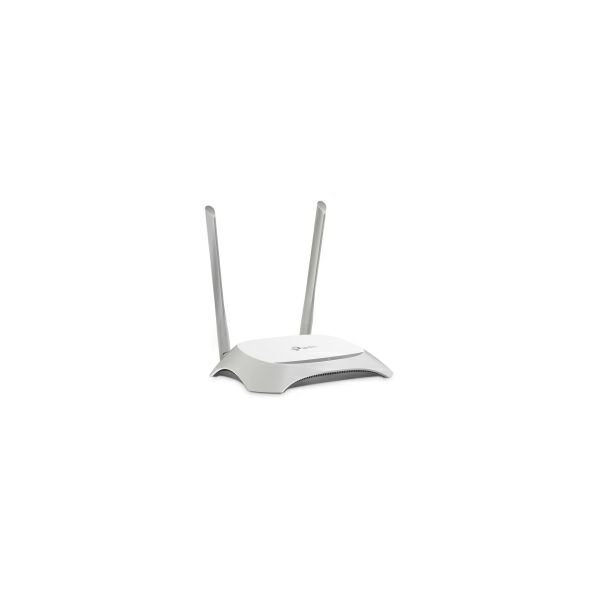

- Package Contents: Wireless N Router TL-WR840N, Power supply unit, Ethernet Cable, Quick Installation Guide
