Features
- Redefining WiFi Routers: With powerful WiFi 7 performance, lightning-fast wired connections, brand-new design, and LED screen.
- Lightning-Fast 19 Gbps Tri-Band WiFi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and lightning-fast downloads.†‡
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.‡
- Dual 10G Ports: 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 4× 2.5 Gbps ports + 1× USB 3.0 port ensure max flexibility and boosted throughput.
- Maximized Coverage: Proprietary WiFi optimization and 8× optimally positioned antennas along with Beamforming deliver more capacity, stronger and more reliable connections, and less interference.
- EasyMesh-Compatible: Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
- TP-Link HomeShield: Enhanced security defends against the latest cyber threats.*
- Easy and Fun to Use: Conveniently manage everything with the Tether app, and visually display the time, weather, and playful graphics with the LED screen.

Specifications
WIRELESS
- WiFi Speeds: BE19000
• 6 GHz: 11520 Mbps (802.11be)
• 5 GHz: 5760 Mbps (802.11be)
• 2.4 GHz: 1376 Mbps (802.11be)
- WiFi Range: 4 Bedroom Houses
• 8× Optimally Positioned Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM: Improves transmission power to strengthen signal coverage
- WiFi Capacity: High, up to 100 Devices
• Tri-Band: Allocate devices to different bands for optimal performance
• 4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
• OFDMA: Simultaneously communicates with multiple clients
• Airtime Fairness: Improves network efficiency by limiting excessive occupation
• DFS: Access an extra band to reduce congestion
• 12 Streams: Connect your devices to more bandwidth
- Working Modes
• Router Mode
• Access Point Mode
- Advanced Functions
• Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• EasyMesh-Compatible
• Works with Alexa and Google Assistant
• IoT Network

HARDWARE
- Ethernet Ports
• 1× 10 Gbps WAN/LAN
• 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN
• 4× 2.5 Gbps LAN
- USB Support
• 1× USB 3.0
• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• Supported Functions: FTP Server, Media Server, Samba Server
- Buttons
• WPS
• LED
• Wi-Fi
Power: 15 V ? 5 A
Dimensions (W x D x H): 11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm)
LED Screen: Yes

SECURITY
- WiFi Encryption
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)
- Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
- Guest Network
• 1× 6 GHz Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
- VPN Server
• OpenVPN Server
• PPTP VPN Server
• L2TP VPN Server
- VPN Client
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client

SOFTWARE
- Protocols
• IPv4
• IPv6
- Service Kit: HomeShield
- EasyMesh: Compatible with EasyMesh
- Parental Controls
• HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
- WAN Type
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
- Quality of Service: QoS by Device
- Cloud Service
• Auto Firmware Upgrade
• TP-Link ID
• DDNS
- NAT Forwarding
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
- IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
- DHCP
• Address Reservation
• DHCP Client List
• Server
- DDNS
• TP-Link
• NO-IP
• DynDNS
- Management
• Tether App
• Webpage

OTHER
- System Requirements
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
- Certifications: CE, FCC, RoHS
- Environment
• Operating Temperature: 0?~40? (32? ~104?)
• Operating Humidity: 10%~90% non-condensing

PHYSICAL
- Dimensions (W×D×H): 11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm)

Package Contents

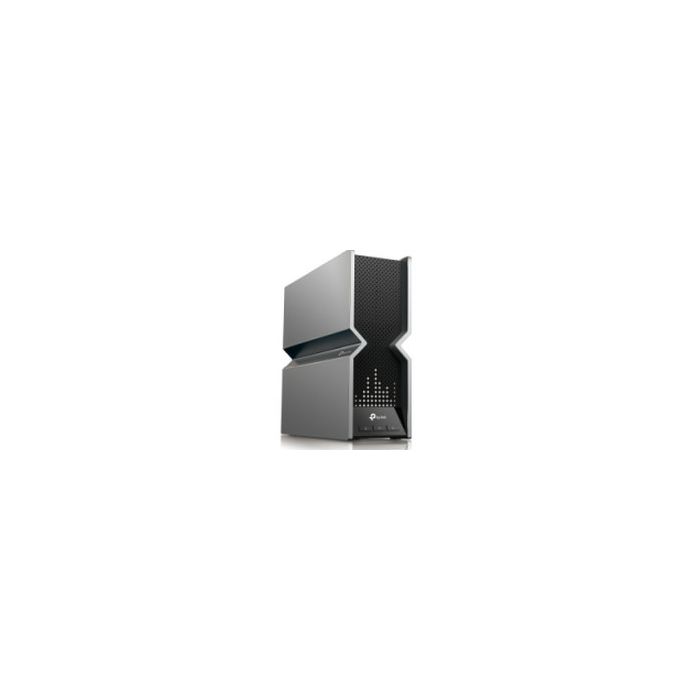

• Wi-Fi 7 Router Archer BE800
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
