- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies


Specifications
HARDWARE FEATURES
-Interface: 1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
- Button: Reset
- Power Supply: 802.3at PoE or 12 V DC
- Power Consumption: 21.5 W
- Dimensions ( W x D x H ): 243 × 243 × 64 mm
-Antenna Type: Internal Omni
* 2.4 GHz: 4× 4 dBi
* 5 GHz: 4× 5 dBi
-Mounting Ceiling or wall mount (kits included)

WIRELESS FEATURES
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
* 5 GHz: Up to 2402 Mbps
* 2.4 GHz: Up to 1148 Mbps
- Wireless Functions
* 1024-QAM
* 4× Longer OFDM Symbol
* OFDMA
* Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
* Enable/Disable Wireless Radio
* Automatic Channel Assignment
* Transmit Power Control (Adjust Transmit Power on dBm)
* QoS(WMM)
* MU-MIMO
* Seamless Roaming
* Band Steering
* Load Balance
* Airtime Fairness
* Beamforming
* Rate Limit
* Reboot Schedule
* Wireless Schedule
* Wireless Statistics based on SSID/AP/Client
- Wireless Security:
* Captive Portal Authentication
* Access Control
* Wireless Mac Address Filtering
* Wireless Isolation Between Clients
* SSID to VLAN Mapping
* Rogue AP Detection
* 802.1X Support
* WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Transmission Power:
* < 26 dBm (2.4 GHz)
* < 26 dBm (5 GHz)

MANAGEMENT
- Omada App: Yes
- Centralized Management:
* Omada Cloud-Based Controller
* Omada Hardware Controller (OC300)
* Omada Hardware Controller (OC200)
* Omada Software Controller
- Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes

OTHERS
- Certification: CE, FCC, RoHS
- Package Contents:

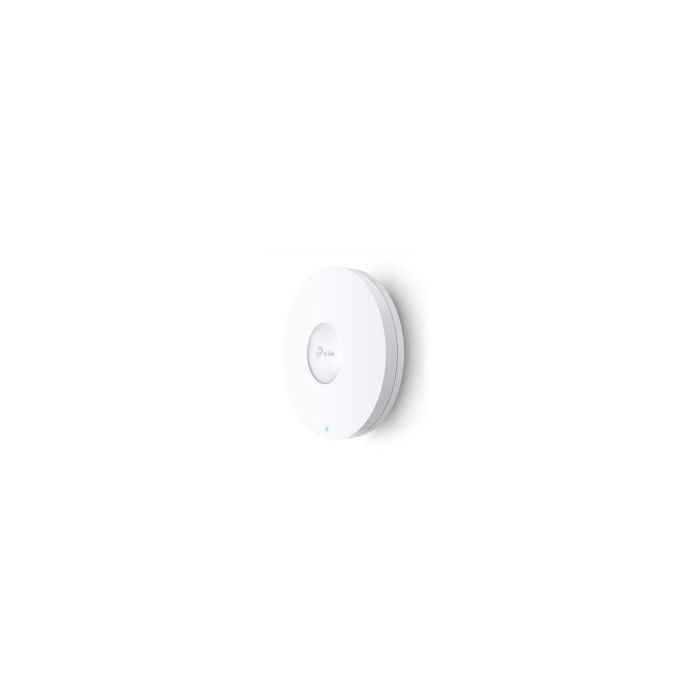

* EAP660 HD
* Power Adapter
* Ceiling/Wall Mounting Kits
* Installation Guide
- Environment
* Operating Temperature: 0–40 ? (32–104 ?)
* Storage Temperature: -40–70 ? (-40–158 ?)
* Operating Humidity: 10–90% RH non-condensing
