Next-Gen Gigabit Wi-Fi 6 Speed
- 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz band ensure smoother streaming and faster downloads.

Connect More Devices
- OFDMA technology increases capacity by 4 times to enable simultaneous transmission to more devices.

Ultra-Low Latency
- Enables more responsive gaming and video chatting.

Expanded Wi-Fi Coverage
- Four high-gain external antennas and Beamforming technology combine to extend strong, reliable Wi-Fi throughout your home.

TP-Link HomeShield
- Enhanced security defends against the latest cyber threats.

Improved Battery Life
- Target Wake Time helps your devices to communicate more while consuming less power.

Compatible with Alexa
- Control your router via voice commands and make your life smarter and easier with Amazon Alexa.

Specifications
WIRELESS
- Standards: Wi-Fi 6
• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: AX3000
• 5 GHz: 2402 Mbps (802.11ax, HE160)
• 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range: 3 Bedroom Houses
• 4× Fixed High-Performance Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas
• Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
• High-Power FEM: Improves transmission power to strengthen signal coverage
- WiFi Capacity: High
• Dual-Band: Allocate devices to different bands for optimal performance
• OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients
• Airtime Fairness: Improves network efficiency by limiting excessive occupation
• DFS: Access an extra band to reduce congestion
• 4 Streams: Connect your devices to more bandwidth
- Working Modes
• Router Mode
• Access Point Mode

SECURITY
- Network Security
• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway
• HomeShield Security
• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner
- Guest Network
• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network
- VPN Server
• OpenVPN
• PPTP
- VPN Client
• Open VPN Client
• PPTP VPN Client
• L2TP VPN Client
- WiFi Encryption
• WPA
• WPA2
• WPA3
• WPA/WPA2-Enterprise (802.1x)

HARDWARE
- Processor: Dual-Core CPU
- Ethernet Ports
• 1× Gigabit WAN Port
• 4× Gigabit LAN Ports
- USB Support: 1× USB 3.0 Port
• Supported Partition Formats:: NTFS, exFAT, HFS+, FAT32
• Supported Functions:
• Apple Time Machine
• FTP Server
• Media Server
• Samba Server
- Buttons:
• Wi-Fi/WPS Button
• Power On/Off Button
• Reset Button
- Power: 12 V ? 2 A

SOFTWARE
- Protocols
• IPv4
• IPv6
- Service Kits: HomeShield
- OneMesh: OneMesh Supported - Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh products.
- EasyMesh - Mesh networking creates smooth, fast, stable roaming. Archer AX55 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.
- Parental Controls
• HomeShield Parental Controls
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports
- WAN Types
• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
- Quality of Service: QoS by Device
- Cloud Service:
• Auto Firmware Upgrade
• OTA Firmware Upgrade
• TP-Link ID
• DDNS
- NAT Forwarding
• Virtual Servers
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
- IPTV
• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN
- DHCP
• Address Reservation
• DHCP Client List
• Server
- DDNS
• TP-Link
• NO-IP
• DynDNS
- Management
• Tether App
• Webpage

OTHER
- System Requirements:
• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)
- Certifications: FCC, CE, RoHS
- Environment:
• Operating Temperature: 0?~40? (32? ~104?)
• Operating Humidity: 10%~90% non-condensing

TEST DATA
WiFi Transmission Power
CE:
• <20dBm(2.4GHz)
• <23dBm(5.15GHz~5.35GHz)
• <30dBm(5.47GHz~5.725GHz)

FCC:
• <30dBm(2.4GHz & 5.15GHz~5.825GHz)

WiFi Reception Sensitivity
5GHz:
• 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-75dBm
• 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm
• 11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm
• 11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm
• 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
• 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm
• 11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-61dBm
• 11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-58dBm

2.4GHz:
• 11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-74dB
• 11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dB
• 11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
• 11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-63dBm

PHYSICAL
- Dimensions (W×D×H): 10.2 × 5.3 × 1.5 in (261.1 × 134.5 × 41.0 mm)
- Package Contents

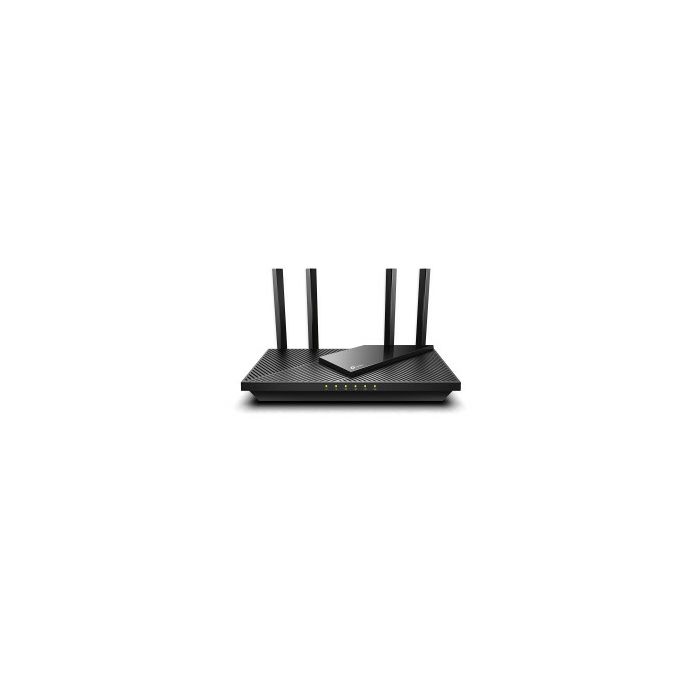

• Wi-Fi Router Archer AX55
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
