- 802.11ac - The Next Generation of Wi-Fi
- 733Mbps Dual Band Connections for Lag-Free Work
* Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
- Stable Omnidirectional Signal and Superior Coverage
* 3 external antennas provide stable omnidirectional signal and superior wireless coverage
- Easy Setup and Use

HARDWARE FEATURES
- Interface:
* 4× 10/100Mbps LAN ports
* 1× 10/100Mbps WAN port
- Button: WPS/Wi-Fi Button, Reset Button, Power On/Off Button
- Antenna:
* 2× 2.4GHz Antennas
* 1× 5GHz Antenna
- External Power Supply: 9V/0.6A
- Dimensions (W×D×H): 230 x 144 x 35 mm

WIRELESS FEATURES
- Wireless Standards:
* IEEE 802.11ac/n/a 5GHz
* IEEE 802.11b/g/n 2.4GHz
- Signal Rate:
* 5GHz: Up to 433Mbps
* 2.4GHz: Up to 300Mbps
- Reception Sensitivity:
* 5GHz:
** 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm;
** 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm
* 2.4GHz:
** 11g 54M: -76dBm11n; HT20 MCS7: -73dBm;
** 11n HT40 MCS7: -71dBm
- Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
- Wireless Security: 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
- Transmission Power: <20dBm (2.4GHz), <23dBm (5GHz)

SOFTWARE FEATURES
- Quality of Service: WMM, Bandwidth Control
- Management: Access Control, Local Management, Remote Management
- Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, Comexe, NO-IP
- VPN Pass-Through: PPTP, L2TP, IPSec
- Access Control:
* Parental Control, Local Management
* Control, Host List
* Access Schedule, Rule Management
- Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Guest Network:
* 2.4GHz guest network ×1
* 5GHz guest network ×1

OTHERS
- System Requirements: Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing

- Package Contents:

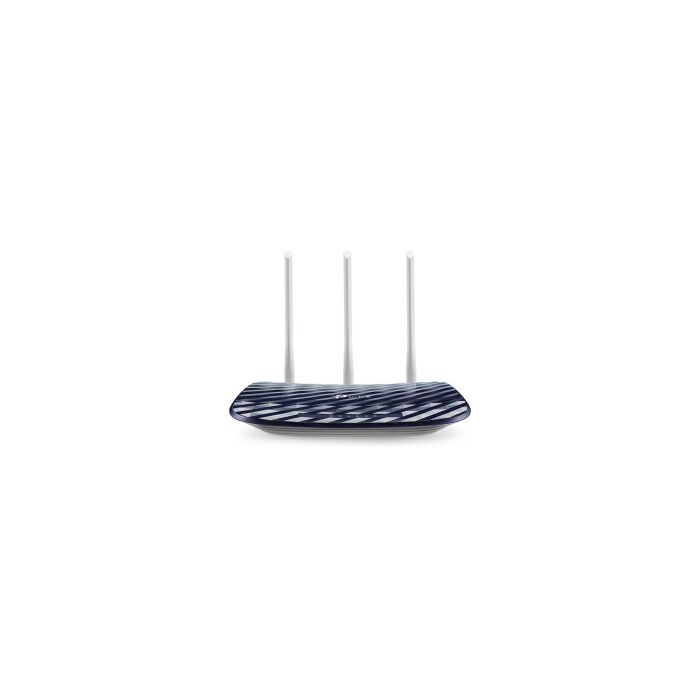

* AC750 Wireless Dual Band Router Archer C20
* Power Adapter
* RJ45 Ethernet Cable
* Quick Installation Guide
