- Faster AC Wi-Fi—AC1200 dual-band is ideal for HD video streaming and high-speed downloading.*
- Far-Reaching Coverage—4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.
- Multi-Mode 3-in-1—Supports Router, Access Point, and Range Extender modes for added flexibility.
- Parental Controls—Manages when and how connected devices can access the internet.
- Guest Network—Provides separate access for guests in order to secure the host network.
- Smooth HD Streaming—Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.
- IPv6 Supported—Compatible with the IPv6 (the latest Internet Protocol version 6).
- Compact and Mountable—Designed to conserve space and complement any décor.

- Standards: Wi-Fi 5
* IEEE 802.11ac/n/a 5 GHz
* IEEE 802.11n/b/g 2.4 GHz
- WiFi Speeds: AC1200
- 5 GHz: 867 Mbps (802.11ac)
- 2.4 GHz: 300 Mbps (802.11n)
- WiFi Range: 3 Bedroom Houses
* 4× Fixed Antennas: Multiple antennas form a signal-boosting array to cover more directions and large areas
* Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
- WiFi Capacity: Medium
* Dual-Band: Allocate devices to different bands for optimal performance
* MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
- Working Modes:
* Router Mode
* Access Point Mode
* Range Extender Mode

HARDWARE
- Processor: Single-Core CPU
- Ethernet Ports:
* 1× 10/100 Mbps WAN Port
* 4× 10/100 Mbps LAN Ports
- Buttons: WPS/Reset Button
- Power: 9 V 0.85 A

SECURITY
- WiFi Encryption:
* WPA
* WPA2
* WPA3
* WPA/WPA2-Enterprise (802.1x)
- Network Security:
* SPI Firewall
* Access Control
* IP & MAC Binding
* Application Layer Gateway
- Guest Network:
* 1× 5 GHz Guest Network
* 1× 2.4 GHz Guest Network

SOFTWARE
- Protocols:
* IPv4
* IPv6
- Parental Controls
* URL Filtering
* Time Controls
- WAN Types:
* Dynamic IP
* Static IP
* PPPoE
* PPTP
* L2TP
- Quality of Service: QoS by Device
- NAT Forwarding:
* Port Forwarding
* Port Triggering
* DMZ
* UPnP
- IPTV:
* IGMP Proxy
* IGMP Snooping
* Bridge
* Tag VLAN
- DHCP:
* Address Reservation
* DHCP Client List
* Server
- DDNS:
* NO-IP
* DynDNS
- Management:
* Tether App
* Webpage
* Check Web Emulator>

OTHER
- System Requirements:
* Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
* Cable or DSL Modem (if needed)
* Subscription with an internet service provider (for internet access)
- Certifications: FCC, CE, RoHS
- Environment: Operating Temperature: 0 C~40 C (32 F ~104 F)
- Storage Temperature: -40 C~60 C (-40 F ~140 F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing

TEST DATA
WiFi Transmission Power
- CE EIRP:
<20dBm(2.4GHz)
<23dBm(5GHz)
- FCC:
<30dBm(2.4GHz & 5GHz)

WiFi Reception Sensitivity
- 5GHz:
11a 6Mbps:-93dBm;
11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;
11ac HT40 mcs9:-66dBm;
11ac HT80 mcs9:-62dBm;
- 2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;

PHYSICAL
- Dimensions (W×D×H): 4.5 × 4.2 × 1.0 in (115 × 106.7 × 24.3 mm)
Package Contents

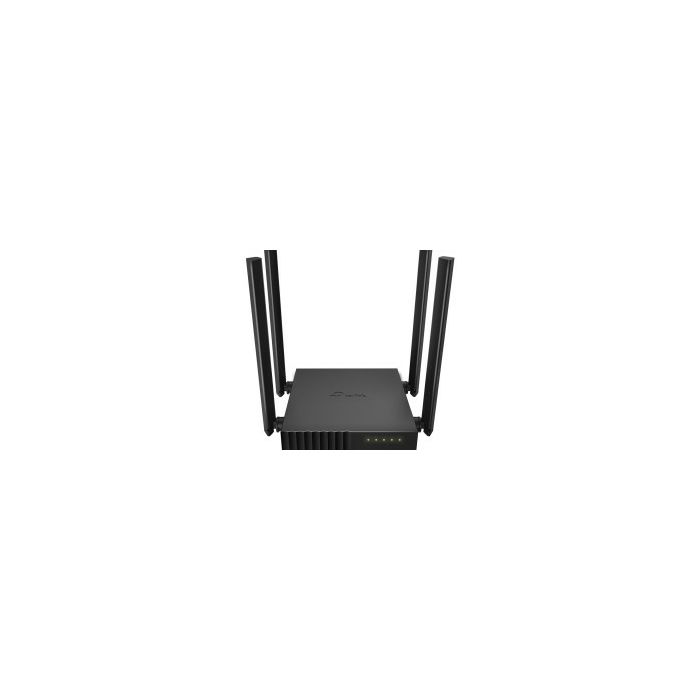

* Wi-Fi Router Archer C54
* Power Adapter
* RJ45 Ethernet Cable
* Quick Installation Guide
