Features
- 8× 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 58%
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface1 and management utility simplify configuration

WHAT THIS PRODUCT DOES

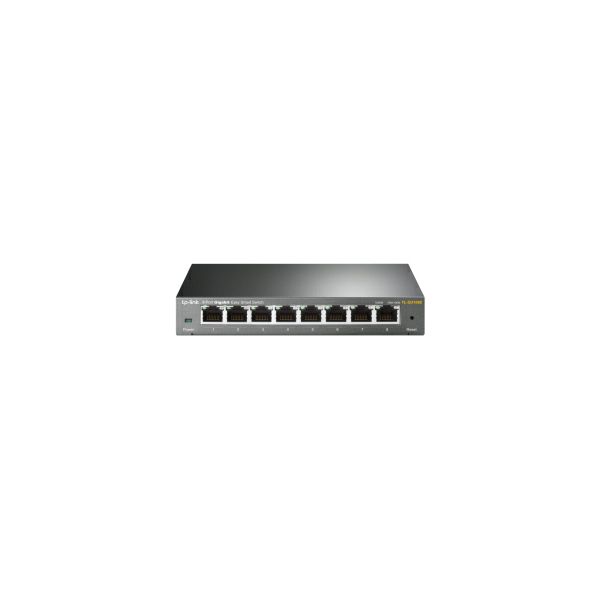

- The TL-SG108E 8-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features
- To optimize traffic on your business network, TL-SG108E offers Port-based/802.1p/DSCP QoS2 to keep latency-sensitive traffic moving smoothly and jitter-free
- Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG108E can save up to 58% of power consumption, making it an eco-friendly solution for your business network

Specification
HARDWARE FEATURES
- Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface:
* 8 10/100/1000Mbps RJ45 Ports
* AUTO Negotiation/AUTO MDI/MDIX
- Network Media:
* 10BASE-T: UTP category 3, 4, 5 cable (max. 100m), EIA/TIA-568 100Ohm STP (max. 100m)
* 100BASE-TX: UTP category 5, 5e cable (max. 100m), EIA/TIA-568 100Ohm STP (max. 100m)
* 1000BASE-T: UTP category 5, 5e, 6 or above cable (max. 100m), EIA/TIA-568 100Ohm STP (max. 100m)
- Fan Quantity: Fanless
- Power Supply: External Power Adapter(Output: 9VDC/0.6A)
- Power Consumption: Maximum: 4.48W (220V/50Hz)
- Dimensions (W×D×H): 158×101×25 mm

PERFORMANCE
- Switching Capacity: 16Gbps
- Packet Forwarding Rate: 11.9Mpps
- MAC Address Table: 4K
- Packet Buffer Memory: 1.5Mb
- Jumbo Frame: 15KB

SOFTWARE FEATURES
- Quality of Service:
* Support Port-based/802.1p/DSCP priority
* Support 4 priority queues
* Rate Limit
* Storm Control
- L2 Features:
* IGMP Snooping V1/V2/V3
* Link Aggregation
* Port Mirroring
* Cable Diagnostics
* Loop Prevention
- VLAN:
* Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
* MTU/Port/Tag VLAN
- Transmission Method: Store-And-Forward

OTHERS
- System Requirements Microsoft® Windows® for running Utility
- Environment:
* Operating Temperature: 0C - 40C (32F - 104F)
* Storage Temperature: -40C - 70C (-40F - 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
- Package Contents TL-SG108E: Power Cord, Installation Guide, Resource CD, Rubber Feet
