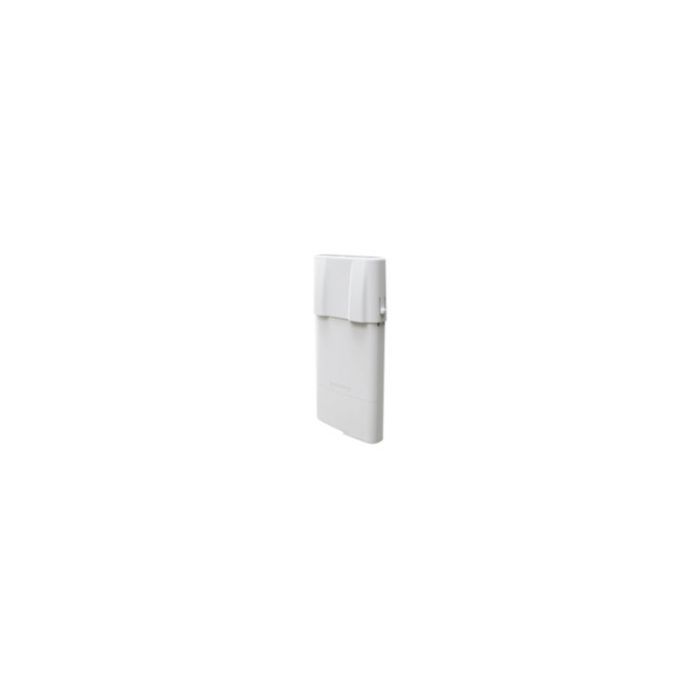

A Wi-Fi 6 upgrade of the popular NetBox 5. AP/CPE/Point-to-point – it can do it all!
- SMA connectors allow creating versatile omnidirectional access points and powerful point-to-point links.

- NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy SMA connectors.
That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

- This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra
storage or other needs, and a Gigabit Ethernet port with PoE-in.We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount. If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs

Specifications
- Product code: L11UG-5HaxD-NB
- CPU Dual-Core: IPQ-5010 800 MHz
- CPU architecture: ARM
- Size of RAM: 256 MB
- Storage: 128 MB, NAND
- Number of 1G Ethernet ports: 1
- USB port 1
- USB 2.0 port type: A
- Wireless band: 5 GHz
- Wireless interface model: QCN-6102
- Wireless: 802.11a/n/ac/ax dual chain
- Connector type: RP-SMA female (outside thread)
- Extras Beeper, signal and status LEDs, voltage and temperature sensors
- Dimensions: 245 x 121 x 50 mm
- Operating system: RouterOS v7, License level 4
- Operating temperature: -40°C to +70°
- PoE-In: Passive PoE
- PoE-in input Voltage: 18-28 V
- Max USB current: 1.5 A
- Power adapter nominal voltage: 24 V
- Power adapter nominal current: 1.2 A
- Max power consumption (without attachments): 6 W
- Max power consumption: 15 W
