ULTIMATE POWER FOR YOUR WHOLE HOME

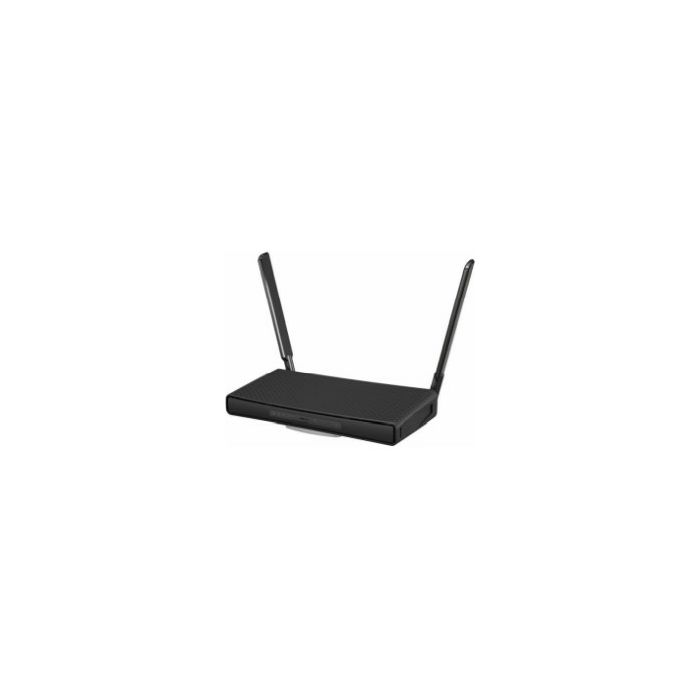

- hAP ax3 is MikroTiks most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

AX WIRELESS - AS STRONG AS AN OX
- Depending on your overall setup, MikroTiks AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax3 works. Home network speeds are getting serious. There are 4x Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit port.

SAFER IN MANY WAYS
- hAP ax3 can ease your mind on multiple levels simultaneously. European-based production, MikroTiks famous Nordic work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE-in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

- To sum things up - hAP ax3 is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless.
- It comes with the most advanced networking software on the market – RouterOS.
- There are no paywalls or confusing subscriptions. All of MikroTiks devices share the same limitless operating system. Imagination is the only limitation.
- Some might ask – why do we even need higher wireless speeds? Well, countless use cases have been previously impossible or difficult to pull off. For example, working with large media files over the wireless network – without the need to download and upload everything.
- Do you really have the time to wait? Grab a hAP ax3 and save more time for the essential things in life.

Specifications
- Architecture: ARM 64bit
- CPU: IPQ-6010
- CPU core count: 4
- CPU nominal frequency: auto (864 - 1800) MHz
- RouterOS license: 6
- Operating System: RouterOS v7
- Size of RAM: 1 GB
- Storage size: 128 MB
- Storage type: NAND
- MTBF: Approximately 200000 hours at 25C
- Tested ambient temperature: -40°C to 70°C
- IPsec hardware acceleration: Yes

WIRELESS
- Wireless 2.4 GHz Max data rate: 574 Mbit/s
- Wireless 2.4 GHz number of chains: 2
- Wireless 2.4 GHz standards: 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz 3.3
- Wireless 2.4 GHz chip model: QCN-5022
- Wireless 2.4 GHz generation: Wi-Fi 6
- Wireless 5 GHz Max data rate: 1200 Mbit/s
- Wireless 5 GHz number of chains: 2
- Wireless 5 GHz standards: 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz: 5.5
- Wireless 5 GHz chip model: QCN-5052
- Wireless 5 GHz generation: Wi-Fi 6
- WiFi speed: AX1800

ETHERNET
- 10/100/1000 Ethernet ports: 4
- Number of 1G Ethernet ports with PoE-out: 1
- Number of 2.5G Ethernet ports: 1

PERIPHERALS
- Number of USB ports: 1
- USB Power Reset: Yes
- USB slot type: USB 3.0 type A
- Max USB current (A): 1

POWERING
- Number of DC inputs: 2 (DC jack, PoE-IN)
- DC jack input Voltage: 12-28 V
- Max power consumption: 38 W
- Max power consumption without attachments: 15 W
- Cooling type: Passive
- PoE in: Passive PoE
- PoE in input Voltage: 18-28 V

POE OUT
- PoE-out ports: Ether 1
- PoE out: Passive PoE
- Max out per port output (input 18-30 V): 0.625 A
- Max total out (A): 0.625 A
- Total output current: 0.625
- Total output power: 15

CERTIFICATION & APPROVALS
- Certification: CE, FCC, IC, EAC, ROHS

OTHER
- CPU temperature monitor: Yes
- Mode button: Yes
