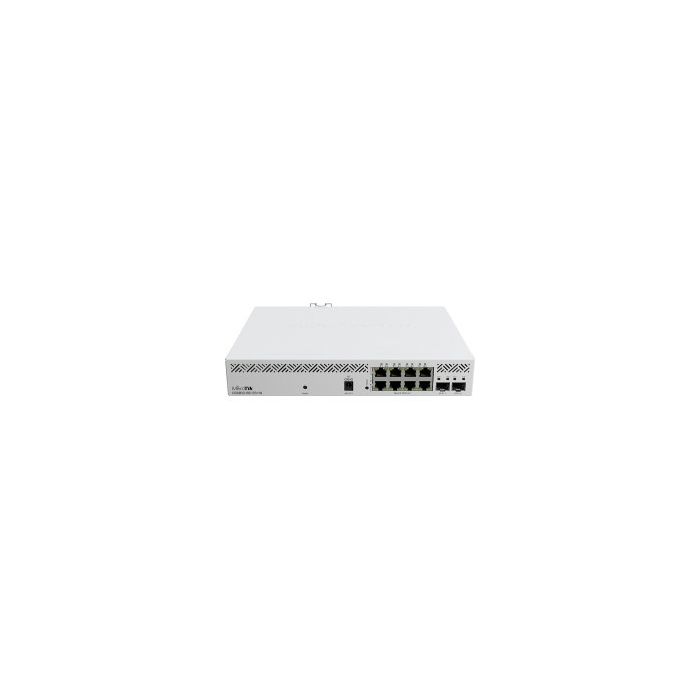

- CSS610-8P-2S+IN is one of the most well-rounded switches on the market
- It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on
- The unique combination of size, features, and price offers unbelievable scalability potential
- There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at and passive PoE-out (you only need a single PSU to provide both)
- This switch is all about nice and easy setups
- The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration
- You can even configure this switch from your web browser!
- It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields
- But the real blessing is the combination of SFP+ and PoE-out Ethernet ports
- With this setup, you can do all kinds of things on a tight budget
- CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios - like hotels, conference halls, or call centers!
- Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP
- Or power a bunch of network cameras and instantly upload the footage to the cloud
- And manage a cluster of wireless access points at the same time
- Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!
- Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch
- CSS610-8P-2S+IN – a solid choice!

Specifications
- Operating System: SwitchOS Lite
- Storage size: 64 KB
- Storage type: FLASH
- MTBF: Approximately 200000 hours at 25C
- Tested ambient temperature: -40°C to 70°C

POWERING
- Number of AC inputs: 1
- AC input range: 100-240
- Number of DC inputs: 1 (DC jack)
- DC jack input Voltage: 48-57 V
- Max power consumption: 162 W
- Max power consumption without attachments: 12 W
- Cooling type: Passive

PoE-OUT
- PoE-out ports: Ether1-Ether8
- PoE out: 802.3af/at
- Max out per port output (input 18-30 V): 1000 mA
- Max out per port output (input 30-57 V): 625 mA
- Total output power: 140

ETHERNET
- 10/100/1000 Ethernet ports: 8
- Number of 1G Ethernet ports with PoE-out: 8

FIBER
- SFP+ ports: 2

OTHER
- CPU temperature monitor: Yes
- Voltage Monitor: Yes

CERTIFICATIONS & APPROVALS
- Certification: CE, EAC, ROHS
- IP: 20

INCLUDED PARTS
- Rack ears for CSS610-8G-2S+IN
- K-48 fastening set
- IEC cord
