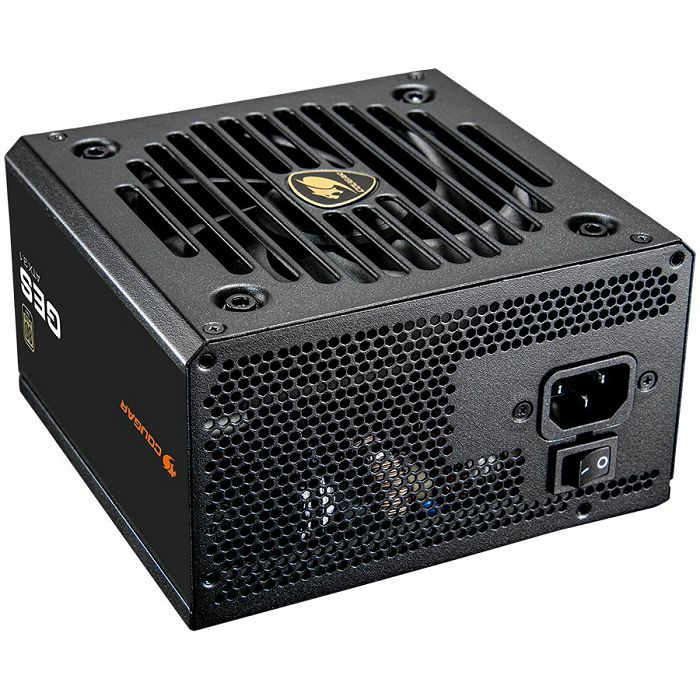

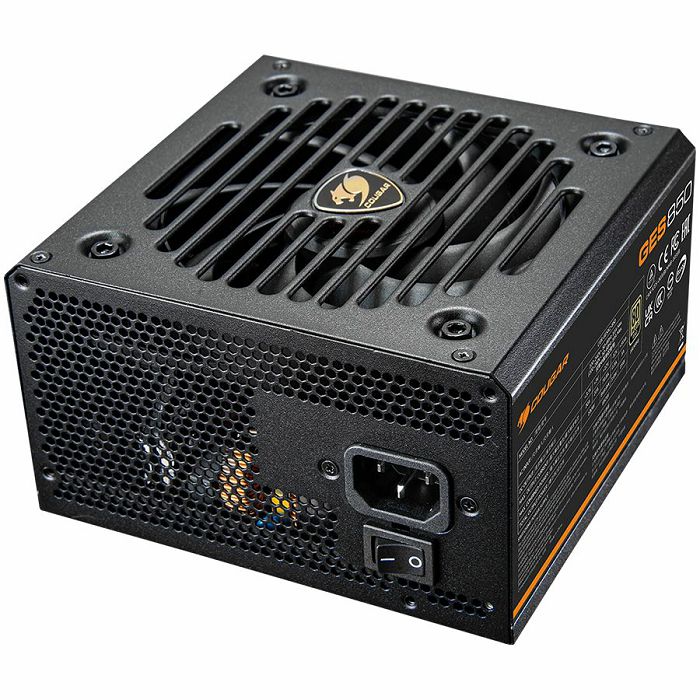

COUGAR GES 750 PSU 80plus Gold Fixed Cables
COUGAR GES 750 PSU 80plus Gold Fixed Cables
Izaberite način plaćanja „uplata na žiro račun“ ili "gotovinom pri preuzimanju u poslovnici" i uštedite dodatnih 5%. Popust se obračuna u zadnjem koraku prije potvrde narudžbe.
GES 750W
POWER YOU RELY ON
The COUGAR GES series is an 80 PLUS Gold-certified power supply, delivering reliable performance even at 40°C. Designed with a native PCIe 12V-2X6 connector, it meets Intel ATX 3.1 and PCIe 5.1 standards. It efficiently supports next-gen GPUs with a single 12+4-pin cable, reaching up to 91% efficiency. This reduces energy consumption, lowers electricity costs, and ensures stable power delivery.
- Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs.
- 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills.
- Designed for current and next-generation multi-core CPU platforms, is compatible with the latest PC technology.
- Powerful performance even at 40°C ambient temperature.
ATX 3.1 Certified
Designed to support next-generation systems, the COUGAR GES series conforms to the ATX 3.1 standard. Featuring a native 12V-2X6 design, it provides power to the next-generation graphics cards through a single 12+4-pin cable. With both 80 PLUS Gold efficiency rating, it offers high-quality stability, durability, and reliability.
The COUGAR GES series passes the four strict power excursion tests from PSU ATX 3.1 Guide, in which the spike power consumption must bear up to 200% of the rated power for 100μs.
High Performance
Efficiency
The GES series features a highly efficient design that surpasses the 80 PLUS Gold standard, to help you save money on your electricity bill.
Silent Performance

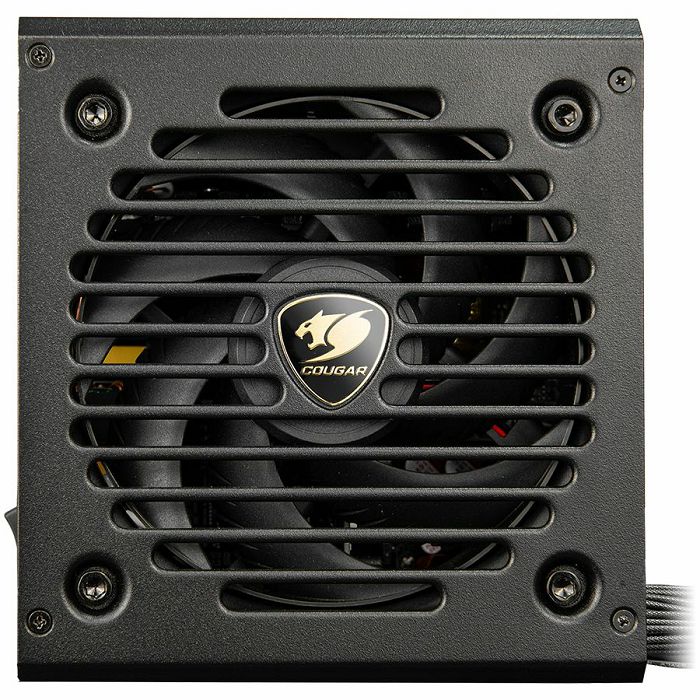

Optimized for silent operation, COUGAR’s exclusive 120mm rifle-bearing fan minimizes friction for an extended lifespan. Its grooved blades and stabilizing ring reduce flex and turbulence, ensuring quiet and efficient performance.
Refined Regulation. Stable Operation
The GES’s LLC, DC-DC and Tri-Sense (3.3V, 5V, and 12V) design provides high-quality outputs, to deliver ultra-stable operation.
Optimal performance in 40°C working temperature environments.
Stylish Design
Featuring a sleek embossed black design with ample cable length for easy and aesthetically pleasing PC installation.
Features
Support PCI Express 5.1 Graphics Cards 12+4 Pin Connector
Connect the 12V-2X6 with true 200% power excursion dynamic outputs.
80 PLUS Gold Certified
Up to 91% efficiency power conversion to cut down your electricity bill.
Silent Spin
Groundbreaking grooved fan blade design lets you experience noiseless gaming.
Compatible with The Lastest PC Technology
Created for user with current and next-generation multi-core CPU platforms.
Compact PSU Size for All PC Cases
Its 140mm length suits most cases and allows for easy installation
Flawless Operation at 40°C
Powerful performance at 40°C ambient temperature.
Full Protections with SCP, OCP, OVP, UVP, OPP, OTP
Protection
UVP (Under Voltage Protection)
If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.
OCP (Overcurrent Protection)
If the current on a single line is higher than indicated, the PSU automatically switches off.
SCP (Short-Circuit Protection)
In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.
OVP (Over Voltage Protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.
OTP (Over Temperature Protection)
If the temperature gets too high, the PSU automatically switches off.
OPP (Over Power Protection)
If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.
Safety Standards
Optimized for silent operation, COUGAR’s exclusive 120mm rifle-bearing fan minimizes friction for an extended lifespan. Its grooved blades and stabilizing ring reduce flex and turbulence, ensuring quiet and efficient performance.
+12V: 62.5 A (750 W)
, +3.3V: 20 A
, +5V: 20 A
, +5VSB: 3 A (15 W)
, -12V: 0.3 A (3.6 W)
, 16-pin PCI Express 5.0: 1
, 20+4-pin Main Connector: 1
, 4/8-pin +12V Power Connector: 2
, 4-pin Peripheral Power Connector: 2
, 6/8-pin PCI Express Connector: 2
, 80 Plus Certification: 80 Plus Gold
, Boja: Crna
, Bruto težina (kg): 2.25 kg
, Bruto težina kutije (kg): 14.1 kg
, Dubina (mm): 140 mm
, Dužina (mm): 305 mm
, EAN kod: 4710483779411
, Input Frequency: 50/60 Hz
, Input Power Connectors Quantity: 1
, Input Voltage: AC 100-240 V
, Izlazna snaga: 750 W
, Jamstveni rok (mjeseci): 24 mjeseci(a)
, Jamstvo u Hrvatskoj: Da
, Količina u kutiji: 5
, Količina u pakiranju: 1
, Modular Power Supply: Da
, Napajanje: Interni
, Neto težina (kg): 1.8 kg
, Priključci napajanja: IEC-320 C14
, S-ATA Connector: 6
, Širina (mm): 150 mm
, Širina (mm): 210 mm
, Težina: 1.75 kg
, Ugrađeni uređaji: Tipka za napajanje
, Ulazna struja: 10 A
, Validacija jamstva: Serijski broj
, Visina (mm): 105 mm
, Visina (mm): 56 mm
, Vrsta napajanja: Napajanje
, Vrsta pakiranja: Maloprodajno
, Zaštita strujnog kruga: Over Voltage Undervoltage Over Temperature Over Current Short Circuit Protection Over Power
